Containerized Data Center Solution

Addressing the drawbacks of traditional data centers, such as long construction cycles, high initial investment, and low flexibility, TMF has launched a containerized data center solution. This solution integrates functions including refrigeration systems, power supply and distribution systems, temperature monitoring, environmental monitoring, cabinets, and fire protection. It provides customers with an energy efficient, flexibly deployable, and space saving data center solution, while also featuring capabilities for outdoor placement and customized combination to meet customers' diverse business needs.

To contace form

BeiGene Integrated Cooling-Station Project

Project Overview: One integrated cooling station assembled from 10 prefabricated containers: 2 water-treatment containers and 8 refrigeration-equipment containers.

System Introduction: The plant is currently equipped with 4 centrifugal chillers totaling 3600 RT (tons of refrigeration): 1×1000 RT fixed-speed chiller, 2×1000 RT variable-frequency chillers, and 1×600 RT variable-frequency chiller,chilled-water pumps, cooling-water pumps, cooling towers, and all associated piping and accessories

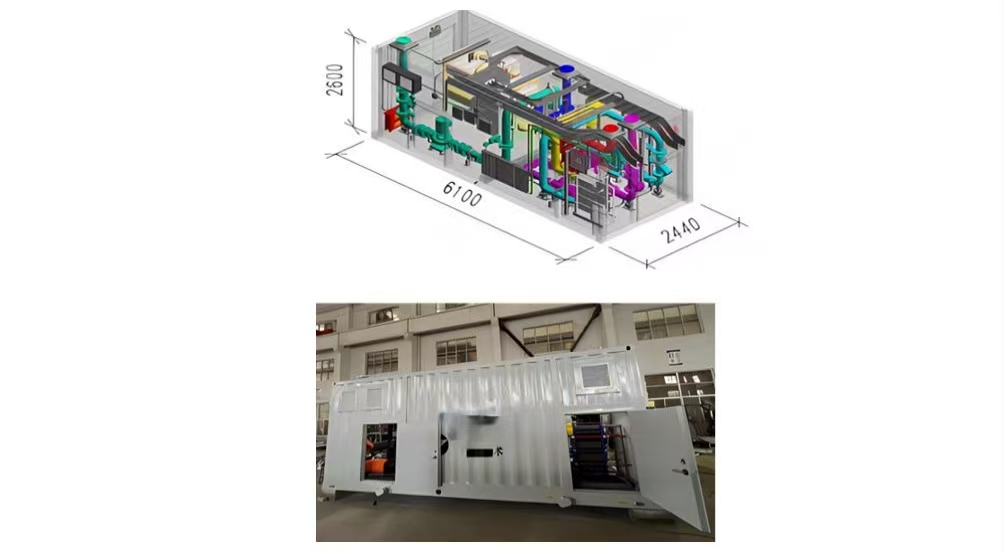

Heat-Recovery System Integration Project for a Telecom Operator

Project Overview: Location – Hohhot, Inner Mongolia • 2 prefabricated modules, each 6100 mm (L) × 2440 mm (W) × 2600 mm (H)

System Introduction: Integrated heat-pump units, plate heat exchangers, circulation pumps, water-source heat pumps, battery racks, UPS modules, electrical controls, and all associated piping, lighting, and ventilation systems.

AI Computing-Center Project (Jiangxi)

Project Overview: Location – Jiangxi, China • 1 container, 12200 mm (L) × 3500 mm (W) × 4150 mm (H)

System Introduction: Integrated cold-plate liquid-cooling + air-cooling architecture: 2 CDUs + 6 liquid-cooled racks + 3 chilled-water in-row precision AC units. Both CDUs and in-row ACs are arranged in N+1 redundancy. A hot-aisle containment layout is used, and a dedicated de-humidifier inside the container maintains the required room-humidity levels.

Data‐Center Project for a Leading Internet Company (Chengdu)

Project Overview: Location – Chengdu, China • 20 prefabricated containers, each 10895 mm (L) × 2940 mm (W) × 3100 mm (H)

System Introduction: Each container integrates cooling-water pumps, fully automatic pressure-maintenance & make-up/vent systems, automatic dosing equipment, water-source heat-pump VRF units, plus the power-distribution, control and security subsystems.

Nanchang Data Center Integrated Cooling Station Project

Project Overview: Jiangxi Province; 4 units at 9500 mm (L) × 3500 mm (W) × 3950 mm (H) and 1 unit at 9500 mm (L) × 2438 mm (W) × 3950 mm (H).

System Introduction: 3 + 1 redundant cooling design delivering 4 000 kW total capacity; each container integrates 4 magnetic-levitation VFD chillers, 4 plate heat-exchanger modules, waste-heat recovery, water-treatment equipment, power-distribution, control, and access-control systems.

Edge Computing Center Project in the Middle East - Wind Wall

Project Overview: The project is located in the Middle East. 1 container, 7200 mm (L) × 3100 mm (W) × 2800 mm (H).

System Introduction: The power density per rack can be expanded up to 80KW. The system integrates power distribution, chilled water wind walls and pipe systems, CDU and secondary-side piping, manifolds, racks, and dynamic environmental management functions.

Immersion Computing Center Project in the Middle East - Mining Facility

Project Overview: The project is located in the Middle East. 2 containers, each 12192 mm (L) × 2438 mm (W) × 2896 mm (H).

System Introduction: The container integrates 6 dry coolers, 6 tanks, associated pipes and fittings, a power distribution system, control systems, and security systems.

Edge Computing Center Project in the Middle East - Cold Plate Container

Project Overview: The project is located in the Middle East. 1 container, 13716 mm (L) × 2438 mm (W) × 2896 mm (H).

System Introduction: 40 kW per rack. The system integrates power distribution and cooling solutions, air-cooled aisle cooling, racks, dynamic management, fire safety, lightning protection, and grounding functions.
